NIP-ESCROW: Conditional Payment Coordination

Published Mar 27, 2026

kind 30532kind 30533kind 30535

NIP-ESCROW

Conditional Payment Coordination

draft optional

This NIP defines three addressable event kinds for conditional fund locking, settlement, and cryptographic payment receipts on Nostr.

Design principle: These events communicate about payments; they do not execute them. Events track payment state; actual money moves on whatever rail the parties choose.

Motivation

Nostr has NIP-57 for Lightning zaps and NIP-47 for wallet automation, but no protocol coordinates conditional payments tied to outcomes. When strangers transact on Nostr, via marketplaces (NIP-15), classified listings (NIP-99), or service coordination, there is no standardised way to:

Lock funds until work is completed
Settle funds based on outcomes (release, forfeit, or partial forfeit)
Record settlement with cryptographic proof, including streaming payment receipts

Pricing and quoting are handled by NIP-QUOTE. This NIP handles what happens after terms are agreed: locking, settling, and receipting.

Scope

NIP-ESCROW is payment-rail agnostic. The Lock event references (via e tag) the upstream Payment Terms event (NIP-QUOTE kind 30531), or MAY reference a Quote (kind 30530) directly when terms are implicit. This NIP does not define pricing; it defines the fund coordination that follows.

Relationship to Existing NIPs

NIP-QUOTE: Provides the pricing layer (Quote + Payment Terms). NIP-ESCROW handles what happens after terms are agreed: locking, settling, and receipting.
NIP-57 (Zaps): For post-completion tips and gratuities, use NIP-57 zaps. NIP-ESCROW handles conditional payments tied to outcomes.
NIP-47 (Wallet Connect): Can compose for automated wallet interactions during lock and settlement.
NIP-69 (Peer-to-Peer Order Events): NIP-69 defines order events for P2P fiat-bitcoin trading with a simple escrow lifecycle. NIP-ESCROW is a general-purpose conditional payment coordination protocol supporting arbitrary payment rails, mutual staking, streaming payments, and multi-party settlement. NIP-69 trades could compose with NIP-ESCROW for the payment hold.

Community NIPs

Catallax (kinds 33400/33401/3402): Catallax defines a complete escrow-backed contract work system with three roles: patrons (who need work), free agents (who perform work), and arbiters (who judge and release payment). It bundles task proposals, arbiter announcements, and task conclusions into a single protocol. NIP-ESCROW differs fundamentally: it is a payment coordination primitive, not a contract work system. NIP-ESCROW events communicate about conditional payments (locks, settlements, receipts) but do not define task proposals, arbiter roles, or work status. A contract work platform could compose NIP-ESCROW for the payment hold alongside its own task management events, or it could use Catallax if the bundled approach fits. The two occupy different layers: Catallax is an application protocol for gig marketplaces; NIP-ESCROW is a composable building block for conditional payments in any context.

Kinds

kind	description
30532	Lock
30533	Settlement
30535	Payment Receipt

All three kinds are addressable events (NIP-01).

Kind 30534 is reserved and intentionally unassigned. It was previously used for a standalone Forfeit kind; the forfeit outcome is now expressed via the outcome tag on Settlement (kind 30533).

Lock (`kind:30532`)

Funds committed. Proof that money has been locked and is no longer spendable by the locking party until settled.

{
  "kind": 30532,
  "pubkey": "<requester-hex-pubkey>",
  "created_at": 1698766000,
  "tags": [
    ["d", "<tx-id>:lock:requester"],
    ["e", "<payment-terms-event-id>"],
    ["party", "requester"],
    ["amount", "50000"],
    ["currency", "SAT"],
    ["trust_model", "ecash-htlc"],
    ["lock_type", "ecash_htlc"],
    ["mint_url", "https://mint.example.com"],
    ["expiration", "1699370800"],
    ["alt", "Escrow lock for 50000 SAT"]
  ],
  "content": ""
}

Tags:

d (REQUIRED): Unique identifier. RECOMMENDED format: <tx-id>:lock:<party>. Applications MAY use any d-tag format that ensures uniqueness.
e (REQUIRED): References the upstream event. Lock events MAY reference a NIP-QUOTE Payment Terms event (kind 30531), but can reference any upstream pricing agreement. The e tag is not limited to NIP-QUOTE events.
party (REQUIRED): Which party locked funds. The party tag value is application-defined. Common conventions include buyer/seller, payer/payee, or client/contractor.
amount (REQUIRED): Locked amount in smallest currency unit.
currency (REQUIRED): Currency code.
trust_model (REQUIRED): Trust model (matches NIP-QUOTE Payment Terms).
lock_type (REQUIRED): Locking mechanism. RECOMMENDED values:
hold_invoice -- Lightning hold invoice (HTLC locked in payment channels)
ecash_htlc -- ecash token with HTLC spending condition (Cashu NUT-14)
ecash_p2pk -- ecash token with P2PK spending condition (Cashu NUT-11)
preauthorization -- payment card preauthorization
custodial -- funds held in custody by a third party
adaptor_signature -- experimental Taproot adaptor signature (pre-signed tx, released by discrete-log reveal)

Implementations MAY use other values.

mint_url (OPTIONAL): Cashu mint holding tokens.
locked_at (OPTIONAL): Unix timestamp when funds were locked. Clients MAY omit this; created_at serves the same purpose.
expiration (OPTIONAL): NIP-40 expiration. Automatic unlock if not settled by this time.

Settlement (`kind:30533`)

Resolves locked funds. The outcome tag declares what happened: funds released to the provider, forfeited as a penalty, partially forfeited, or expired.

{
  "kind": 30533,
  "pubkey": "<requester-hex-pubkey>",
  "created_at": 1698770000,
  "tags": [
    ["d", "<tx-id>:settlement:requester"],
    ["e", "<lock-event-id>"],
    ["party", "requester"],
    ["outcome", "released"],
    ["amount", "50000"],
    ["currency", "SAT"],
    ["release_reason", "completed"],
    ["alt", "Escrow settlement: 50000 SAT released"]
  ],
  "content": ""
}

Tags:

d (REQUIRED): Unique identifier. RECOMMENDED format: <tx-id>:settlement:<party> or <tx-id>:settlement:milestone_<N>.
e (REQUIRED): References the Lock event being settled.
party (REQUIRED): Which party's funds are being settled. Uses the same application-defined values as the Lock event.
outcome (REQUIRED): One of:
released -- funds released to the counterparty on successful completion
forfeited -- full funds penalised for breach of terms
partial_forfeit -- partial penalty; remainder returned to the locked party
expired -- lock expired without resolution; funds returned to the locking party
amount (REQUIRED): Settled amount in smallest currency unit. Semantics vary by outcome:
released: full locked amount released to the provider
forfeited: amount returned to the locked party (0 for full forfeit)
partial_forfeit: amount returned to the locked party
expired: full locked amount returned to the locking party
currency (REQUIRED): Currency code.

Tags for `released` and `expired` outcomes

release_reason (REQUIRED for released): Primary values: completed, cancelled, refunded. Applications MAY define additional release reasons such as cancelled_grace, milestone, dispute_resolved.
released_at (OPTIONAL): Explicit release timestamp. When omitted, created_at serves the same purpose.
milestone_id (OPTIONAL): Identifier of the completed milestone.

Tags for `forfeited` and `partial_forfeit` outcomes

forfeit_amount (REQUIRED): Forfeited amount in smallest currency unit. For forfeited, equals the full locked amount. For partial_forfeit, the penalised portion.
forfeit_reason (REQUIRED): Primary values: breach, timeout, dispute_loss. Applications MAY define additional forfeit reasons such as no_show, late_cancellation, abandonment, misconduct.
refund_amount (OPTIONAL for partial_forfeit): Amount returned to the offending party.
forfeited_at (OPTIONAL): Explicit forfeiture timestamp. When omitted, created_at serves the same purpose.

Privacy: Settlement events with forfeited or partial_forfeit outcomes SHOULD be delivered via NIP-59 gift wrap. See [Privacy](#privacy).

Settlement Examples

Released (happy path):

{
  "kind": 30533,
  "pubkey": "<requester-hex-pubkey>",
  "created_at": 1698770000,
  "tags": [
    ["d", "<tx-id>:settlement:requester"],
    ["e", "<lock-event-id>"],
    ["party", "requester"],
    ["outcome", "released"],
    ["amount", "50000"],
    ["currency", "SAT"],
    ["release_reason", "completed"],
    ["alt", "Escrow settlement: 50000 SAT released"]
  ],
  "content": ""
}

Forfeited (provider no-show):

{
  "kind": 30533,
  "pubkey": "<escrow-agent-hex-pubkey>",
  "created_at": 1698770000,
  "tags": [
    ["d", "<tx-id>:settlement:provider"],
    ["e", "<lock-event-id>"],
    ["party", "provider"],
    ["outcome", "forfeited"],
    ["amount", "0"],
    ["currency", "SAT"],
    ["forfeit_amount", "25000"],
    ["forfeit_reason", "no_show"],
    ["alt", "Escrow settlement: 25000 SAT forfeited (no_show)"]
  ],
  "content": "Provider did not arrive within the agreed window."
}

Partial forfeit (late cancellation):

{
  "kind": 30533,
  "pubkey": "<escrow-agent-hex-pubkey>",
  "created_at": 1698770000,
  "tags": [
    ["d", "<tx-id>:settlement:requester"],
    ["e", "<lock-event-id>"],
    ["party", "requester"],
    ["outcome", "partial_forfeit"],
    ["amount", "35000"],
    ["currency", "SAT"],
    ["forfeit_amount", "15000"],
    ["forfeit_reason", "late_cancellation"],
    ["refund_amount", "35000"],
    ["alt", "Escrow settlement: 15000 SAT forfeited, 35000 SAT refunded"]
  ],
  "content": "Requester cancelled after provider was en route."
}

Payment Receipt (`kind:30535`)

Settlement record with cryptographic confirmation that money changed hands. A receipt without tick_number is a final settlement receipt. A receipt with tick_number is an incremental streaming receipt, proving periodic payment during ongoing work.

Final Settlement Receipt

{
  "kind": 30535,
  "pubkey": "<escrow-agent-hex-pubkey>",
  "created_at": 1698770100,
  "tags": [
    ["d", "<tx-id>:receipt"],
    ["payer", "<requester-pubkey>"],
    ["payee", "<provider-pubkey>"],
    ["amount", "47500"],
    ["currency", "SAT"],
    ["trust_model", "ecash-htlc"],
    ["settlement_proof", "<htlc-preimage-hex>"],
    ["alt", "Payment receipt for 47500 SAT"]
  ],
  "content": ""
}

Streaming Receipt

{
  "kind": 30535,
  "pubkey": "<requester-hex-pubkey>",
  "created_at": 1698769600,
  "tags": [
    ["d", "<tx-id>:receipt:0001"],
    ["e", "<payment-terms-event-id>"],
    ["payer", "<requester-pubkey>"],
    ["payee", "<provider-pubkey>"],
    ["amount", "100"],
    ["currency", "SAT"],
    ["tick_number", "1"],
    ["cumulative", "100"],
    ["interval_seconds", "3600"],
    ["alt", "Streaming payment receipt: tick 1, 100 SAT (cumulative 100)"]
  ],
  "content": ""
}

Tags:

d (REQUIRED): Unique identifier. RECOMMENDED format: <tx-id>:receipt for final receipts, or <tx-id>:receipt:<zero-padded-sequence> for streaming receipts.
payer (REQUIRED): Pubkey of the paying party.
payee (REQUIRED): Pubkey of the receiving party.
amount (REQUIRED): Settled amount in smallest currency unit.
currency (REQUIRED): Currency code.
trust_model (REQUIRED): Trust model used for settlement. Uses the same vocabulary as NIP-QUOTE Payment Terms (e.g. ecash-htlc, ecash-p2pk, trustless, custodial-escrow, direct).
settlement_proof (RECOMMENDED): Cryptographic proof, such as an HTLC preimage or Lightning payment preimage. Enables independent verification.
settled_at (OPTIONAL): Explicit settlement timestamp. When omitted, created_at serves the same purpose.
e (OPTIONAL): References the upstream event (Payment Terms or Lock).

Streaming Receipt Tags

The following tags are used for incremental streaming receipts:

tick_number (REQUIRED for streaming): Sequential tick number (starting from 1). Presence of this tag distinguishes a streaming receipt from a final receipt.
cumulative (REQUIRED for streaming): Running total of all tick amounts. Clients SHOULD reject ticks with inconsistent cumulative values.
interval_seconds (REQUIRED for streaming): Configured interval in seconds.
payment_proof (OPTIONAL): Cryptographic proof for this specific tick (preimage, etc.).

Privacy: Payment Receipt events MUST be delivered via NIP-59 gift wrap. See [Privacy](#privacy).

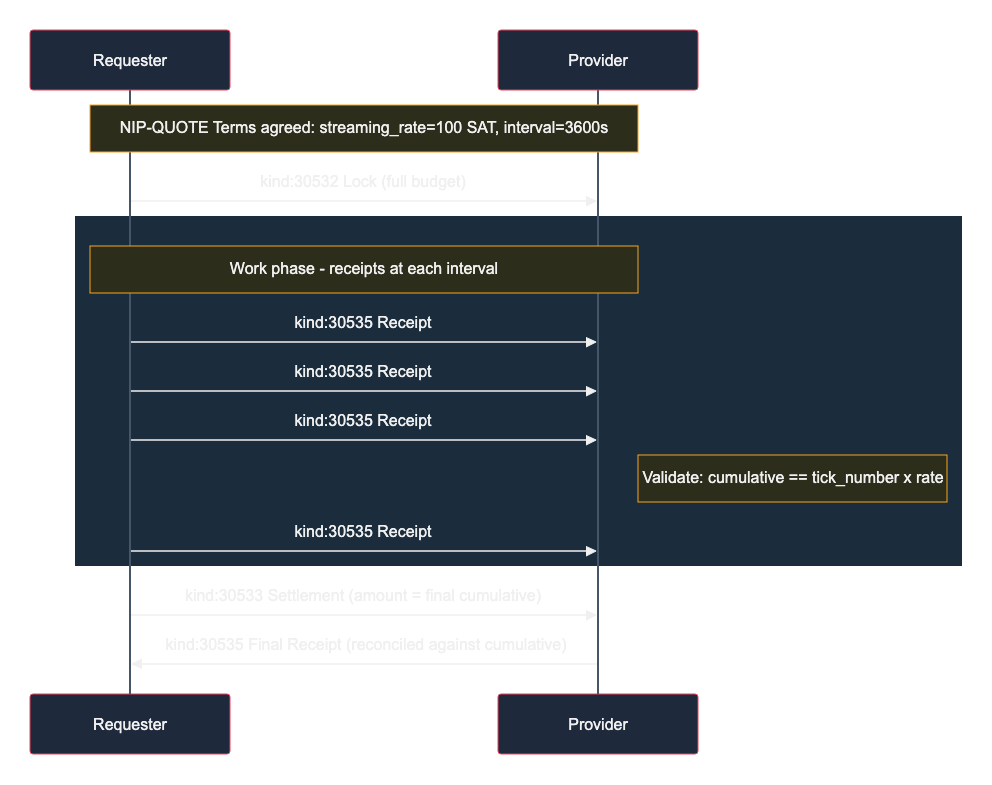

Streaming Receipt Flow

!Escrow Protocol Flow

sequenceDiagram
    participant R as Requester
    participant P as Provider

    Note over R,P: NIP-QUOTE Terms agreed: streaming_rate=100 SAT, interval=3600s

    R->>P: kind:30532 Lock (full budget)

    rect rgb(27, 45, 61)
        Note over R,P: Work phase - receipts at each interval
        R->>P: kind:30535 Receipt #1 (amount=100, cumulative=100, tick_number=1)
        R->>P: kind:30535 Receipt #2 (amount=100, cumulative=200, tick_number=2)
        R->>P: kind:30535 Receipt #3 (amount=100, cumulative=300, tick_number=3)
        Note right of P: Validate: cumulative == tick_number x rate
        R->>P: kind:30535 Receipt #N (amount=100, cumulative=Nx100, tick_number=N)
    end

    R->>P: kind:30533 Settlement (amount = final cumulative)
    P->>R: kind:30535 Final Receipt (reconciled against cumulative)

Protocol Flow

sequenceDiagram
    actor R as Requester
    actor P as Provider
    participant EA as Escrow Agent (optional)

    Note over R,P: NIP-QUOTE: Quote + Terms agreed upstream

    R->>EA: kind:30532 Lock
    Note left of R: Funds committed - hold invoice,<br/>Cashu HTLC, or similar

    rect rgb(27, 45, 61)
        Note over R,P: Work phase
        loop Streaming receipts (if streaming payment)
            R-->>P: kind:30535 Receipt with tick_number (gift-wrapped)
        end
    end

    alt Happy path
        R->>EA: kind:30533 Settlement (outcome=released)
        Note left of R: Funds released to provider
    else Breach of terms
        EA-->>P: kind:30533 Settlement (outcome=forfeited, gift-wrapped)
        Note right of EA: Funds penalised (NIP-59)
    end

    P-->>R: kind:30535 Payment Receipt (gift-wrapped)
    Note right of P: Final settlement recorded with<br/>cryptographic proof (NIP-59)

Arrow legend: ->> solid = public event; -->> dashed = NIP-59 gift-wrapped (private)

Lock: Funds are committed via kind:30532, referencing the upstream NIP-QUOTE Payment Terms.
Work: For streaming jobs, periodic kind:30535 receipts (with tick_number) prove ongoing payment.
Settlement: On success, kind:30533 with outcome=released releases funds. On breach, outcome=forfeited or outcome=partial_forfeit penalises them.
Receipt: kind:30535 (without tick_number) records the final settlement with cryptographic proof.

Lock and Settlement events may be published by either party, an escrow agent, or an automated system. The NIP does not prescribe who publishes them, only their structure.

Payment Type Flows

The payment_type tag on NIP-QUOTE Payment Terms (kind:30531) determines how escrow events are sequenced:

flowchart LR
    Terms["NIP-QUOTE\nkind:30531\nPayment Terms"] --> PT{"payment_type?"}

    PT -->|simple| S_Lock["Lock"] --> S_Work["Work"] --> S_Settle["Settlement"] --> S_Receipt["Receipt"]

    PT -->|streaming| ST_Lock["Lock"] --> ST_Tick["Streaming\nreceipts"] --> ST_Settle["Settlement\n(= final cumulative)"] --> ST_Receipt["Final Receipt"]

    PT -->|milestone| M_Lock["Lock\n(milestone 1)"] --> M_Work["Work"] --> M_Settle["Settlement\n(milestone 1)"] --> M_Receipt["Receipt\n(milestone 1)"]
    M_Receipt -.->|"repeat for each\nmilestone"| M_Lock

    PT -->|split| SP_Lock["Lock\n(full amount)"] --> SP_Settle1["Settlement\n(provider A)"] --> SP_Receipt1["Receipt\n(provider A)"]
    SP_Lock --> SP_Settle2["Settlement\n(provider B)"] --> SP_Receipt2["Receipt\n(provider B)"]

Replaceability

All three kinds are addressable events. For Lock (kind:30532), replaceability is useful: lock status can be updated as conditions change.

For Settlement (kind:30533) and Receipt (kind:30535), these events represent real-world financial actions that have already occurred. In practice, however, they are addressable events and relays will follow standard NIP-01 replacement rules. Applications SHOULD treat them as effectively append-only:

Each settlement or receipt event SHOULD use a unique d tag value (the recommended <tx-id>:<type>:<qualifier> format guarantees this).
Clients SHOULD treat the first valid Settlement or Receipt for a given d tag as canonical. Subsequent replacements by the same author update the record (e.g. corrections, additional streaming receipts).
If a client encounters a replacement with materially different amounts or proofs, it SHOULD flag the conflict for review rather than silently accepting the update.
The streaming receipt model (multiple receipts with distinct tick_number values and unique d tags) already assumes replaceability for correction purposes, so each tick naturally occupies its own coordinate.

Event Chain (`e`-tag References)

flowchart LR
    NQ["NIP-QUOTE\nkind:30531\nPayment Terms"]
    L["kind:30532\nLock"]
    S["kind:30533\nSettlement"]
    Rcpt["kind:30535\nReceipt"]

    NQ --> L
    L --> S
    S --> Rcpt

    style NQ fill:#2d1b3d,stroke:#e94560
    style L fill:#2d2d1b,stroke:#f5a623
    style S fill:#1b3d2d,stroke:#16c79a
    style Rcpt fill:#1b3d2d,stroke:#16c79a

Legend: purple = upstream (NIP-QUOTE); yellow = mutable (updatable via addressable replacement); green = append-only by convention (first valid instance is canonical; replacements are corrections)

Security Considerations

Payment-rail agnostic. Events communicate about payments; they do not move money. The same event schema works whether parties use Lightning, Cashu, on-chain, or cash.
Smallest currency unit. All amounts MUST be expressed in the smallest unit of the specified currency (cents for USD, satoshis for SAT) to avoid floating-point errors.
Settlement proof. kind:30535 receipts SHOULD include a settlement_proof tag with cryptographic proof (HTLC preimage, Lightning payment preimage) enabling independent verification.
Mutual staking. Both parties MAY lock deposits via kind:30532. The threat of forfeiture incentivises good behaviour without requiring trust in a third party.

sequenceDiagram
    actor R as Requester
    actor P as Provider

    rect rgb(27, 61, 45)
        Note over R,P: Scenario A - Happy path
        R->>R: kind:30532 Lock (requester stake)
        P->>P: kind:30532 Lock (provider stake)
        Note over R,P: Work completes successfully
        R->>P: kind:30533 Settlement (outcome=released, requester funds to provider)
        P->>R: kind:30533 Settlement (outcome=released, provider stake returned)
    end

    rect rgb(45, 45, 27)
        Note over R,P: Scenario B - Provider no-show
        R->>R: kind:30532 Lock (requester stake)
        P->>P: kind:30532 Lock (provider stake)
        Note over R,P: Timeout - provider fails to show
        R->>R: kind:30533 Settlement (outcome=expired, requester stake returned)
        R->>R: kind:30533 Settlement (outcome=forfeited, provider stake penalised)
    end

    rect rgb(61, 27, 27)
        Note over R,P: Scenario C - Requester breach
        R->>R: kind:30532 Lock (requester stake)
        P->>P: kind:30532 Lock (provider stake)
        Note over R,P: Dispute - requester breaches terms
        P->>P: kind:30533 Settlement (outcome=released, provider stake returned)
        P->>P: kind:30533 Settlement (outcome=forfeited, requester stake penalised)
    end

Cumulative validation. For streaming receipts, the cumulative field MUST equal the running total of all tick amounts. Clients SHOULD reject receipts with inconsistent cumulative values.
NIP-44 encryption. Sensitive payment details (mint URLs, settlement proofs, invoices) SHOULD be NIP-44 encrypted when privacy is required.

Privacy

Financial events MUST be delivered privately using NIP-59 gift wrap. These events contain settlement amounts, cryptographic proofs, and party identities that should not be visible to relay operators or passive observers.

Gift-wrap requirements

Kind	Event	Requirement	Recipients
30533	Settlement (`forfeited` / `partial_forfeit`)	SHOULD gift-wrap	Penalised party, counterparty, escrow agent (if any)
30535	Payment Receipt	MUST gift-wrap	Payer, payee, escrow agent (if any)
30535	Streaming Receipt (with `tick_number`)	MUST gift-wrap	Payer, payee

The inner event (the sealed rumour) retains its full tag structure. Gift wrap provides the privacy layer, not tag restructuring. Recipients unwrap the NIP-59 envelope to access the original event.

Events that remain public

Kind	Event	Rationale
30532	Lock	Public commitment signal; proves funds are locked
30533	Settlement (`released` / `expired`)	Public completion signal; proves funds were settled

Metadata minimisation

Implementations SHOULD include only the tags marked REQUIRED or RECOMMENDED in each event kind. Optional tags increase the metadata surface; omit them unless the application specifically needs them.

Settlement proofs (settlement_proof tag) are particularly sensitive. Even within gift-wrapped events, implementations SHOULD consider whether the proof needs to be stored on relays long-term or can be communicated via ephemeral channels.

REQ Filters

Clients can subscribe to escrow events using standard NIP-01 filters:

// Locks referencing a specific payment terms event
{"kinds": [30532], "#e": ["<payment-terms-event-id>"]}

// Settlements by outcome (filter by escrow agent, post-filter by outcome tag)
{"kinds": [30533], "authors": ["<escrow-agent-pubkey>"]}

// Receipts for a specific payer (client-side filter; multi-letter tags are not relay-indexed)
{"kinds": [30535], "#payer": ["<payer-pubkey>"]}

Note: #payer is a multi-letter tag filter. NIP-01 only defines relay-side indexing for single-letter tag names. Filter by kinds at the relay, then match payer client-side after retrieval.

Test Vectors

All examples use timestamp 1709740800 (2024-03-06T12:00:00Z) and placeholder hex pubkeys.

Kind 30532 -- Lock

{
  "kind": 30532,
  "pubkey": "b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2",
  "created_at": 1709740800,
  "tags": [
    ["d", "tx_abc123:lock:requester"],
    ["e", "aaaa1111bbbb2222cccc3333dddd4444eeee5555ffff6666aaaa1111bbbb2222"],
    ["party", "requester"],
    ["amount", "50000"],
    ["currency", "SAT"],
    ["trust_model", "ecash-htlc"],
    ["lock_type", "ecash_htlc"],
    ["mint_url", "https://mint.example.com"],
    ["expiration", "1710345600"],
    ["alt", "Escrow lock for 50000 SAT"]
  ],
  "content": "",
  "id": "<32-byte-hex>",
  "sig": "<64-byte-hex>"
}

Kind 30533 -- Settlement (released)

{
  "kind": 30533,
  "pubkey": "b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2",
  "created_at": 1709740800,
  "tags": [
    ["d", "tx_abc123:settlement:requester"],
    ["e", "bbbb2222cccc3333dddd4444eeee5555ffff6666aaaa1111bbbb2222cccc3333"],
    ["party", "requester"],
    ["outcome", "released"],
    ["amount", "50000"],
    ["currency", "SAT"],
    ["release_reason", "completed"],
    ["alt", "Escrow settlement: 50000 SAT released"]
  ],
  "content": "",
  "id": "<32-byte-hex>",
  "sig": "<64-byte-hex>"
}

Kind 30533 -- Settlement (forfeited)

{
  "kind": 30533,
  "pubkey": "c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3",
  "created_at": 1709740800,
  "tags": [
    ["d", "tx_abc123:settlement:provider"],
    ["e", "bbbb2222cccc3333dddd4444eeee5555ffff6666aaaa1111bbbb2222cccc3333"],
    ["party", "provider"],
    ["outcome", "forfeited"],
    ["amount", "0"],
    ["currency", "SAT"],
    ["forfeit_amount", "25000"],
    ["forfeit_reason", "no_show"],
    ["alt", "Escrow settlement: 25000 SAT forfeited (no_show)"]
  ],
  "content": "Provider did not arrive within the agreed window.",
  "id": "<32-byte-hex>",
  "sig": "<64-byte-hex>"
}

Kind 30535 -- Payment Receipt (final)

{
  "kind": 30535,
  "pubkey": "c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3",
  "created_at": 1709740800,
  "tags": [
    ["d", "tx_abc123:receipt"],
    ["e", "dddd4444eeee5555ffff6666aaaa1111bbbb2222cccc3333dddd4444eeee5555"],
    ["payer", "b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2"],
    ["payee", "a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2"],
    ["amount", "47500"],
    ["currency", "SAT"],
    ["trust_model", "ecash-htlc"],
    ["settlement_proof", "0123456789abcdef0123456789abcdef0123456789abcdef0123456789abcdef"],
    ["alt", "Payment receipt for 47500 SAT"]
  ],
  "content": "",
  "id": "<32-byte-hex>",
  "sig": "<64-byte-hex>"
}

Kind 30535 -- Payment Receipt (streaming)

{
  "kind": 30535,
  "pubkey": "b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2",
  "created_at": 1709740800,
  "tags": [
    ["d", "tx_abc123:receipt:0001"],
    ["e", "aaaa1111bbbb2222cccc3333dddd4444eeee5555ffff6666aaaa1111bbbb2222"],
    ["payer", "b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2"],
    ["payee", "a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2"],
    ["amount", "100"],
    ["currency", "SAT"],
    ["trust_model", "ecash-htlc"],
    ["tick_number", "1"],
    ["cumulative", "100"],
    ["interval_seconds", "3600"],
    ["alt", "Streaming payment receipt: tick 1, 100 SAT (cumulative 100)"]
  ],
  "content": "",
  "id": "<32-byte-hex>",
  "sig": "<64-byte-hex>"
}

Dependencies

NIP-01: Basic protocol flow, addressable events
NIP-40: Expiration timestamps (lock expiration)
NIP-44: Versioned encrypted payloads (private payment details)
NIP-59: Gift wrap (private delivery of financial events)
NIP-17: Private direct messages (gift-wrapped payment details)
NIP-QUOTE: Structured pricing and payment terms (Quote + Payment Terms)

Reference Implementation

No public reference implementation exists yet. Implementors SHOULD refer to the kind definitions above.

NIP-ESCROW: Conditional Payment Coordination

NIP-ESCROW

Conditional Payment Coordination

Motivation

Scope

Relationship to Existing NIPs

Community NIPs

Kinds

Lock (kind:30532)

Settlement (kind:30533)

Tags for released and expired outcomes

Tags for forfeited and partial_forfeit outcomes

Settlement Examples

Payment Receipt (kind:30535)

Final Settlement Receipt

Streaming Receipt

Streaming Receipt Tags

Streaming Receipt Flow

Protocol Flow

Payment Type Flows

Replaceability

Event Chain (e-tag References)

Security Considerations

Privacy

Gift-wrap requirements

Events that remain public

Metadata minimisation

REQ Filters

Test Vectors

Kind 30532 -- Lock

Kind 30533 -- Settlement (released)

Kind 30533 -- Settlement (forfeited)

Kind 30535 -- Payment Receipt (final)

Kind 30535 -- Payment Receipt (streaming)

Dependencies

Reference Implementation

Lock (`kind:30532`)

Settlement (`kind:30533`)

Tags for `released` and `expired` outcomes

Tags for `forfeited` and `partial_forfeit` outcomes

Payment Receipt (`kind:30535`)

Event Chain (`e`-tag References)
