NIP-IDENTITY-TREES: Purpose-Tagged Identity Derivation (nsec-tree)

NIP-IDENTITY-TREES

Purpose-Tagged Identity Derivation (nsec-tree)

draft optional

Motivation

Nostr users who want to maintain separate identities — one for social posting, one for commerce, one for a specific application — must today manage multiple independent nsecs. There is no standard way to derive these from a single secret, so users either reuse one identity (losing privacy) or accumulate a growing collection of unrelated keys with no recovery path if any are lost.

NIP-06 solves a related problem: deterministic derivation of a single Nostr identity from a BIP-39 mnemonic. This NIP is complementary, not competing. It extends the same mnemonic path — using a different account index to avoid collision — and adds a second entry point for users who already have an nsec and do not use a mnemonic wallet. Both entry points produce a tree root from which an unlimited number of child keypairs can be derived deterministically.

Each child is scoped to a human-readable purpose string and a numeric index. A "social" child and a "commerce" child are entirely independent secp256k1 keypairs; an observer cannot tell they share a root. A user who loses access to their wallet can recover all children by re-running derivation over their known purpose strings. Optional linkage proofs allow selective, verifiable disclosure that a child belongs to a particular master identity, without revealing other children.

This NIP requires no relay changes, no client changes, and no new event kinds. Child keys are ordinary Nostr keypairs. Any existing Nostr client can use a child identity without knowing it was derived. The derivation happens entirely client-side, using only HMAC-SHA256 and — optionally — standard BIP-32 key derivation.

Notation

Overview

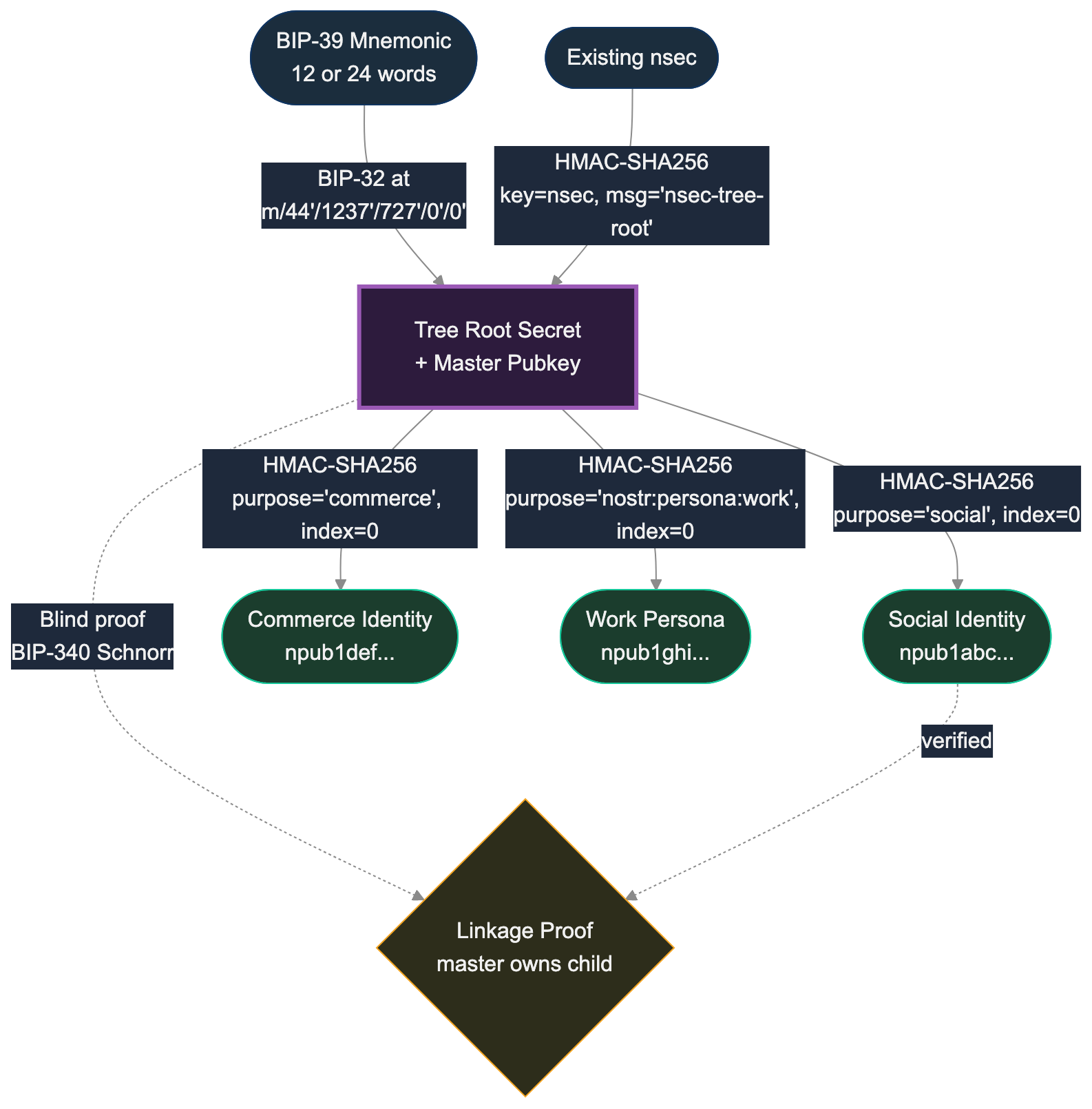

The following diagram illustrates the derivation flow:

!Purpose-Tagged Identity Derivation Flow

flowchart TD
    classDef green fill:#1b3d2d,stroke:#16c79a,color:#f0f0f0
    classDef yellow fill:#2d2d1b,stroke:#f5a623,color:#f0f0f0
    classDef blue fill:#1b2d3d,stroke:#0f3460,color:#f0f0f0
    classDef red fill:#3d1b1b,stroke:#e94560,color:#f0f0f0
    classDef purple fill:#2d1b3d,stroke:#9b59b6,color:#f0f0f0

    MNEMONIC([BIP-39 Mnemonic<br/>12 or 24 words]):::blue
    NSEC([Existing nsec]):::blue

    MNEMONIC -- "BIP-32 at<br/>m/44'/1237'/727'/0'/0'" --> ROOT
    NSEC -- "HMAC-SHA256<br/>key=nsec, msg='nsec-tree-root'" --> ROOT

    ROOT[Tree Root Secret<br/>+ Master Pubkey]:::purple

    ROOT -- "HMAC-SHA256<br/>purpose='social', index=0" --> SOCIAL([Social Identity<br/>npub1abc...]):::green
    ROOT -- "HMAC-SHA256<br/>purpose='commerce', index=0" --> COMMERCE([Commerce Identity<br/>npub1def...]):::green
    ROOT -- "HMAC-SHA256<br/>purpose='nostr:persona:work', index=0" --> PERSONA([Work Persona<br/>npub1ghi...]):::green

    ROOT -. "Blind proof<br/>BIP-340 Schnorr" .-> PROOF{Linkage Proof<br/>master owns child}:::yellow
    SOCIAL -. "verified" .-> PROOF

    style ROOT stroke-width:3px

Tree Root Derivation

Two entry points produce a 32-byte tree root secret. The tree root is a valid secp256k1 private key; its x-only public key (BIP-340) is the master pubkey, used in linkage proofs and recovery.

The two paths intentionally produce different tree roots from the same underlying key material. Users must choose one entry point and use it consistently.

Mnemonic Path

BIP-39 mnemonic (with optional passphrase)
  -> BIP-32 seed
  -> derive child at m/44'/1237'/727'/0'/0'  (all five levels hardened)
  -> 32-byte private key = tree_root

The derivation path m/44'/1237'/727'/0'/0' uses NIP-06's coin type (1237') but a different account index (727') to avoid collision with NIP-06's own identity at 0'. All levels are hardened because the tree root is used only as an HMAC secret and linkage proof signer — never for extended public key derivation.

master_pubkey = secp256k1_x_only(tree_root)

Nsec Path

The nsec is not used directly as the HMAC key. An intermediate HMAC creates one-way separation between the signing key and the derivation key, following the HKDF-Extract pattern:

tree_root = HMAC-SHA256(key = nsec_bytes, msg = utf8("nsec-tree-root"))

Where nsec_bytes is the raw 32-byte private key decoded from the bech32 nsec, and "nsec-tree-root" is the fixed 14-byte ASCII label (6e7365632d747265652d726f6f74).

master_pubkey = secp256k1_x_only(tree_root)

This ensures the tree root cannot be reversed to recover the nsec, and that compromising a child key does not expose the nsec. The nsec remains usable as a standalone signing key without dual-purpose risk.

Child Key Derivation

All child keys are derived from the tree root via HMAC-SHA256:

message      = utf8("nsec-tree") || 0x00 || utf8(purpose) || 0x00 || uint32_be(index)
child_privkey = HMAC-SHA256(key = tree_root, msg = message)
child_pubkey  = secp256k1_x_only(child_privkey)

The HMAC message is constructed by concatenating:

The null byte separators prevent concatenation ambiguity between purpose strings and indices.

Curve Order Handling

HMAC-SHA256 output is 256 bits. If the output, interpreted as an unsigned integer, is greater than or equal to the secp256k1 curve order n, it is not a valid private key (probability ≈ 3.7×10⁻³⁹). In this case the implementation MUST increment the index by one and retry. The returned index reflects the actual index used, not the originally requested index.

current_index = requested_index
while current_index <= 0xFFFFFFFF:
    msg       = utf8("nsec-tree") || 0x00 || utf8(purpose) || 0x00 || uint32_be(current_index)
    candidate = HMAC-SHA256(key = tree_root, msg = msg)
    if candidate < n:
        return (candidate, current_index)
    current_index += 1
error("index overflow")

If incrementing would exceed 0xFFFFFFFF, the derivation MUST fail. In practice this is impossible.

Purpose Strings

Purpose strings MUST satisfy all of the following:

1. Non-empty — minimum 1 byte when UTF-8 encoded
2. Maximum 255 bytes when UTF-8 encoded
3. No embedded null bytes (0x00)
4. At least one non-whitespace character
5. Case-sensitive, byte-exact — "Social" and "social" are different purposes

Recommended format: lowercase, colon-namespaced (e.g. "social", "commerce", "trott:rider", "402:api:v2:prod"). The colon convention lets applications claim namespaces without a central registry.

Linkage Proofs

Linkage proofs allow the tree root owner to prove that a child identity belongs to them. Two types exist.

Blind Attestation

Proves ownership without revealing the derivation slot (purpose or index):

attestation = "nsec-tree:own|" || hex(master_pub) || "|" || hex(child_pub)
signature   = schnorr_sign(utf8(attestation), tree_root)

Full Attestation

Proves ownership and reveals the derivation slot:

attestation = "nsec-tree:link|" || hex(master_pub) || "|" || hex(child_pub) || "|" || purpose || "|" || decimal(index)
signature   = schnorr_sign(utf8(attestation), tree_root)

In both cases hex(...) is lowercase hex (64 characters for an x-only pubkey) and decimal(index) is the index in decimal ASCII with no leading zeroes.

Verification

Reconstruct the canonical attestation string from the proof's fields and compare it to the provided attestation. Then verify the BIP-340 Schnorr signature against the master pubkey:

expected = canonical_attestation_from_fields(proof)
if expected != proof.attestation:
    return false
return schnorr_verify(proof.signature, utf8(proof.attestation), master_pub)

Proof Structure (JSON)

Recovery

Since derivation is deterministic, the same root always produces the same children. To recover all child identities, scan known purpose strings at indices 0 through N-1. A gap limit of N=20 is recommended, following BIP-44 convention: stop scanning a purpose once 20 consecutive indices have produced no known activity.

Compatibility

NIP-06: Complementary. nsec-tree uses NIP-06's coin type (1237') at a different account index (727'). Both derivations can coexist under the same mnemonic without collision.

NIP-07 / NIP-46: Complementary. A signer can hold the tree root and derive child keys on demand, reducing the amount of key material that must be stored or transferred.

NIP-26: Unrelated. NIP-26 delegated signing authority using tags embedded in events, requiring relay and client support. nsec-tree operates entirely client-side and produces ordinary keypairs with no protocol-level delegation mechanism.

Linked subkeys (PR #1810): Complementary. If adopted, nsec-tree can generate the derived keys that linked subkeys would publicly associate.

NIP-4e (Decoupling Encryption from Identity, PR #1647): Philosophically aligned. NIP-4e argues signing and encryption should use separate per-device keys. nsec-tree extends this principle to signing identities themselves — separate purpose-scoped keys from a single root, with cryptographic unlinkability between them.

NIP-102 (Subkey Attestation, PR #1450), NIP-0b (On-Behalf-Of, PR #1482), NIP-41 (Identity Management, PR #1032): All three address publicly linked subkeys for device management or key rotation. nsec-tree solves a different problem: deriving multiple unlinkable identities for privacy, not linking device keys for recovery. The proposals are complementary — nsec-tree generates keys, subkey NIPs can publicly associate them when the user chooses to reveal the relationship.

NIP-D8 (Key Rotation, PR #2114): Explicitly rejects HD subkey schemes due to validation cost. nsec-tree sidesteps this concern because child keys are ordinary Nostr keypairs — no chain validation is required. Verifiers only see a standalone pubkey unless the user presents a linkage proof.

FROSTR: Threshold signing (t-of-n FROST) for Nostr. Solves multi-device key security (no single device holds the full secret) but does not address multi-identity derivation. Complementary — a FROSTR group could hold an nsec-tree root.

Security Considerations

Master compromise. If the tree root leaks, all child keys are derivable. There is no forward secrecy — the tree is fully deterministic. Protect the master secret with the same rigour as any Nostr nsec.

Unlinkability. Without a linkage proof, no observer can determine whether two child keys share a root. The derivation is entirely private; purpose strings, indices, and the tree root are HMAC inputs, never exposed in outputs.

One-way derivation. Child keys cannot be reversed to recover the tree root. The tree root cannot be reversed to recover the nsec or mnemonic. Each derivation layer is a one-way HMAC-SHA256 operation.

Relay correlation. nsec-tree provides cryptographic unlinkability. Network-level unlinkability (IP addresses, timing, relay sets) is an operational concern outside the scope of this NIP.

Zeroisation. Implementations SHOULD zero secret material after use. In garbage-collected languages, string encodings (bech32 nsec) cannot be reliably zeroed; security-sensitive code should work with raw byte arrays.

No custom cryptography. All primitives are standard: HMAC-SHA256 (RFC 2104), BIP-32 key derivation, BIP-340 Schnorr signatures.

Test Vectors

All conformant implementations MUST produce identical outputs for these inputs.

Vector 1 — nsec path, purpose "social", index 0

Input:

nsec_bytes:  0101010101010101010101010101010101010101010101010101010101010101
purpose:     "social"
index:       0

Tree root derivation:

tree_root:   8d2db9ce9548534e7ae924d05e311355e3a12744214c88e65b39fa2bf2df6d6f
master_pub:  8c03e047ae60c01e942a8337e71d17e3517fcc63ee6ceff8173bbd23fabe649d

Child derivation:

message:      6e7365632d7472656500736f6369616c0000000000  (21 bytes)
child_priv:   98e98b476eab3c2bcb5020e4a679a41b74eebfb30a07944c4361c906501265e7
child_pub:    cdc4cd2a01ba1b8afd3299b66c38d13043a19acb687c334f0527cffaf464b372
actual_index: 0

Vector 4 — mnemonic path, purpose "social", index 0

Input:

mnemonic:    "abandon abandon abandon abandon abandon abandon abandon abandon abandon abandon abandon about"
passphrase:  (none)
purpose:     "social"
index:       0

Tree root derivation (BIP-32 path m/44'/1237'/727'/0'/0'):

tree_root:   cc92d213b5eccd19eb85c12c2cf6fd168f27c2cc347c51a7c4c62ac67795fc65
master_pub:  3eb14b67cc942c5388e03570b68d0887d40ff34af234662344e6c72a6298d656

Child derivation:

child_priv:   f0e7c85f394df83212e108e60a7e226045742aa6d967ea1cfddf27ae65ac6ac8
child_pub:    1a4e31045ee7be1fc736954ffe7ea48fffc784865452a79545a027d0e712fc97
actual_index: 0

Reference Implementation

• TypeScript: https://github.com/forgesworn/nsec-tree (ESM-only, 136 tests, frozen vectors)
• Rust: https://github.com/forgesworn/heartwood (heartwood-core crate, 57 tests, byte-for-byte match)
