NIP-CHANNELS: Context-Scoped Messaging Primitives

NIP-CHANNELS

Message Status & Typing Indicators

draft optional

Two event kinds for message status tracking and real-time typing indicators on Nostr, designed to complement NIP-17 private direct messages with context-scoping and delivery state.

Standalone. This NIP works independently on any Nostr application.

Motivation

NIP-17 handles encrypted message delivery between participants via gift wrap. It solves the hard problem of private, metadata-protected messaging. However, two coordination primitives are missing from the messaging stack:

1. Delivery and read state. Senders have no way to know whether a message was delivered or read. In transactional contexts (marketplace orders, freelance projects, service coordination), this uncertainty creates friction and duplicated messages.
2. Real-time typing signals. Typing indicators are a standard UX expectation in messaging. Without them, participants cannot tell whether the other party is actively engaged or has walked away.

For context-scoped messaging (messages tied to a specific order, project, or task), NIP-17 messages can carry a context_id tag inside the sealed rumour to scope conversations. This NIP provides the status and presence primitives that complete the picture.

Use cases:

• Marketplace: Buyer and seller coordinate delivery details for an order.
• Freelance: Client and contractor discuss project requirements.
• Events: Organiser and vendor coordinate setup logistics.
• Local services: Requester and provider share access codes, arrival updates.

Relationship to Existing NIPs

• **NIP-17 (Private Direct Messages):** NIP-17 handles encrypted message delivery via gift wrap (NIP-59). For context-scoped messaging, add a context_id tag to the inner rumour event. This NIP provides the status and UX primitives that NIP-17 lacks. See [Context-Scoped Messaging with NIP-17](#context-scoped-messaging-with-nip-17) for concrete examples.
• **NIP-29 (Relay-based Groups):** Relay-managed groups are persistent, relay-hosted communities with membership controls. Context-scoped channels are ephemeral, participant-specific, and tied to a shared context (transaction, project, order). They auto-expire when the context completes.
• **NIP-44 (Encryption):** Message Status events use NIP-44 encryption for private delivery state.
• **NIP-59 (Gift Wrap):** NIP-17 uses gift wrap for sender metadata protection. Status events MAY also be gift-wrapped for maximum privacy.
• **NIP-38 (User Statuses):** User statuses (kind 30315) are long-lived, public, addressable events for general status updates (e.g. "listening to music"). Typing indicators are ephemeral (kind 20502), context-scoped, sent to specific recipients, and expire within seconds. Different event type, lifecycle, and audience.

Kinds

Message Status (kind:30565)

Read receipts and delivery confirmation. Addressable; the latest status for a given context replaces previous status events.

{
    "kind": 30565,
    "pubkey": "<reader-hex-pubkey>",
    "created_at": 1698766100,
    "tags": [
        ["d", "order_abc123:status:<reader-pubkey>:<counterparty-pubkey>"],
        ["context_id", "order_abc123"],
        ["last_read", "<event-id-of-last-read-message>"],
        ["p", "<counterparty-pubkey>"],
        ["expiration", "1701358100"],
        ["alt", "Message read status for context order_abc123"]
    ],
    "content": "<NIP-44 encrypted: {\"unread_count\": 0, \"last_read_at\": 1698766095}>",
    "id": "<32-byte-hex>",
    "sig": "<64-byte-hex>"
}

Tags:

• d (REQUIRED): Unique status identifier. Format: <context_id>:status:<reader-pubkey>:<counterparty-pubkey>. The counterparty pubkey discriminates between pairwise streams in the same context. Without it, a participant in multiple streams would overwrite their read position when reading messages from a different stream.
• context_id (REQUIRED): Shared context identifier.
• last_read (REQUIRED): Event ID of the most recently read message.
• p (REQUIRED): Counterparty who should see this receipt.
• expiration (RECOMMENDED): NIP-40 expiration timestamp. Implementations SHOULD set expiration to context completion plus 30 days.

Content:

The content field is NIP-44 encrypted to the counterparty. It MAY contain a JSON object with additional status metadata:

Clients that do not need rich status metadata MAY leave the content empty.

REQ Filters

Subscribe to status updates for a context:

["REQ", "sub-status", {
    "kinds": [30565],
    "#p": ["<my-pubkey>"]
}]

Filter by kinds and #p at the relay, then post-filter by context_id tag client-side. NIP-01 defines relay-side filters for single-letter tag names only.

Typing Indicator (kind:20502)

Ephemeral real-time typing signal. Relays MUST NOT persist these events.

{
    "kind": 20502,
    "pubkey": "<typer-hex-pubkey>",
    "created_at": 1698766200,
    "tags": [
        ["context_id", "order_abc123"],
        ["p", "<recipient-pubkey>"],
        ["expiration", "1698766205"],
        ["alt", "Typing indicator"]
    ],
    "content": "",
    "id": "<32-byte-hex>",
    "sig": "<64-byte-hex>"
}

Tags:

• context_id (REQUIRED): Shared context identifier.
• p (REQUIRED): Recipient(s) of the typing signal.
• expiration (REQUIRED): Short NIP-40 expiration (5-10 seconds). Safety net; if the sender stops typing, the indicator expires automatically.

Clients SHOULD send typing indicators at most once every 3 seconds to avoid relay spam. When a user stops typing, the client SHOULD NOT send a "stopped typing" event; the expiration handles cleanup.

REQ Filters

Subscribe to typing indicators for a context:

["REQ", "sub-typing", {
    "kinds": [20502],
    "#p": ["<my-pubkey>"]
}]

Filter by kinds and #p at the relay, then post-filter by context_id tag client-side. NIP-01 defines relay-side filters for single-letter tag names only.

Context-Scoped Messaging with NIP-17

NIP-17 handles message content delivery. This section shows how to compose NIP-17 messages with a context_id tag for context-scoped channels, and how these combine with the status and typing primitives defined above.

Adding context_id to NIP-17 Messages

The context_id tag is placed inside the sealed rumour (the kind 14 event that NIP-17 wraps). Relays and observers cannot see it; only the recipient can decrypt it.

Rumour (kind 14, unsigned inner event):

{
    "kind": 14,
    "pubkey": "<sender-hex-pubkey>",
    "created_at": 1698766000,
    "tags": [
        ["p", "<recipient-pubkey>"],
        ["context_id", "order_abc123"],
        ["message_type", "text"],
        ["subject", "Order #ABC123"]
    ],
    "content": "I'm at the back entrance, look for the red door."
}

This rumour is then sealed (kind 13) and gift-wrapped (kind 1059) per the NIP-17 specification. The context_id and message_type tags are only visible after decryption.

Message Types (Application-Level Convention)

Note: The message_type and template tags extend NIP-17 rumours at the application layer. They are not part of the NIP-17 specification. Applications that do not need message classification MAY omit them entirely.

The message_type tag classifies the message content. Clients SHOULD support the following types:

Clients that do not recognise a message_type SHOULD fall back to rendering the content as plain text.

Structured Message Templates (Application-Level Convention)

When message_type is system, the content field MAY use structured JSON for machine-parseable notifications:

{
    "kind": 14,
    "pubkey": "<sender-hex-pubkey>",
    "created_at": 1698766300,
    "tags": [
        ["p", "<recipient-pubkey>"],
        ["context_id", "order_abc123"],
        ["message_type", "system"],
        ["template", "eta_update"]
    ],
    "content": "{\"eta_minutes\": 5, \"message\": \"Driver is 5 minutes away\"}"
}

Common templates:

Applications MAY define additional templates. Clients that do not recognise a template SHOULD render the message field from the content JSON, or fall back to the raw content string.

Multi-Party Channels

NIP-17 supports sending gift-wrapped copies to multiple recipients. For a three-party context (e.g. buyer, courier, and recipient), the sender creates a separate gift-wrapped copy for each participant:

Rumour (kind 14, same inner event for all recipients):

{
    "kind": 14,
    "pubkey": "<courier-hex-pubkey>",
    "created_at": 1698766400,
    "tags": [
        ["p", "<buyer-pubkey>"],
        ["p", "<recipient-pubkey>"],
        ["context_id", "delivery_xyz789"],
        ["message_type", "text"]
    ],
    "content": "Package picked up, heading to the drop-off point now."
}

The sender gift-wraps this rumour separately for each p-tagged recipient. Each recipient receives their own gift-wrapped copy and can independently decrypt it.

For privacy-sensitive contexts where not all participants should see all messages, use separate pairwise streams with the same context_id:

Each stream uses the same context_id but different p tags. A buyer-to-courier message is NOT visible to the recipient unless explicitly p-tagged.

Channel Lifecycle

1. Creation: A channel begins when the first NIP-17 message with a given context_id is sent. There is no explicit "create channel" event.
2. Active messaging: Participants exchange NIP-17 messages with the shared context_id. Message Status (kind 30565) and Typing Indicator (kind 20502) events provide coordination signals.
3. Archival: Messages SHOULD include an expiration tag (NIP-40) for automatic cleanup. Implementations SHOULD set expiration to context completion plus 30 days. Pre-context enquiries SHOULD use standard NIP-17 messages without a context_id.

Retrieving Channel History

Recipients reconstruct channel history by filtering their decrypted NIP-17 messages (kind 14 rumours) by context_id. Since NIP-17 messages are gift-wrapped, there is no relay-side filter for context_id; clients MUST decrypt messages first, then filter locally.

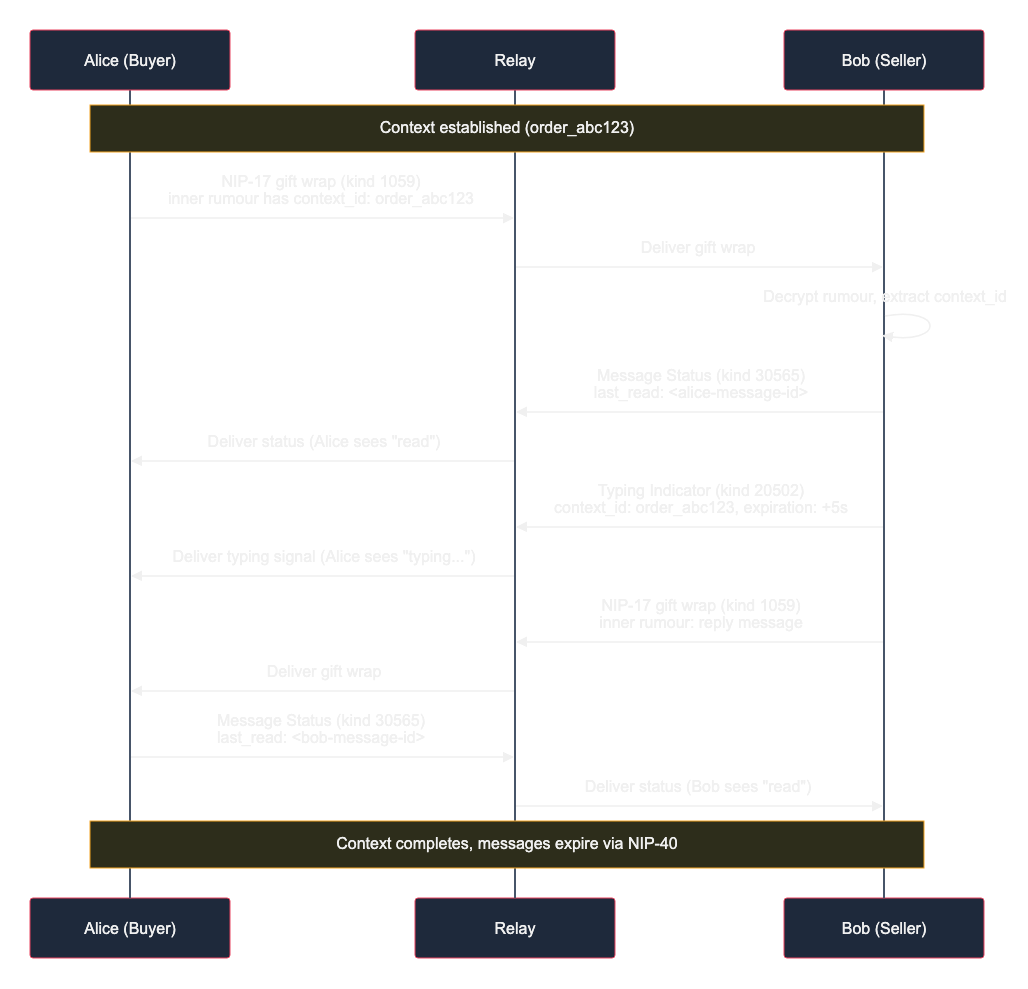

Protocol Flow

!Messaging Flow

sequenceDiagram
    participant A as Alice (Buyer)
    participant R as Relay
    participant B as Bob (Seller)

    Note over A,B: Context established (order_abc123)

    A->>R: NIP-17 gift wrap (kind 1059)<br/>inner rumour has context_id: order_abc123
    R->>B: Deliver gift wrap
    B->>B: Decrypt rumour, extract context_id

    B->>R: Message Status (kind 30565)<br/>last_read: <alice-message-id>
    R->>A: Deliver status (Alice sees "read")

    B->>R: Typing Indicator (kind 20502)<br/>context_id: order_abc123, expiration: +5s
    R->>A: Deliver typing signal (Alice sees "typing...")

    B->>R: NIP-17 gift wrap (kind 1059)<br/>inner rumour: reply message
    R->>A: Deliver gift wrap

    A->>R: Message Status (kind 30565)<br/>last_read: <bob-message-id>
    R->>B: Deliver status (Bob sees "read")

    Note over A,B: Context completes, messages expire via NIP-40

Security Considerations

• End-to-end encryption. Message content is delivered via NIP-17 gift wrap, providing NIP-44 encryption and sender metadata protection. Relays cannot read message content or determine the true sender.
• Scoped channels. Messages are bound to a context_id inside the encrypted rumour. There is no cross-context message leakage. The context_id is not visible to relays.
• Automatic expiration. NIP-40 expiration tags ensure messages and status events do not persist indefinitely. Implementations SHOULD set expiration to context completion plus 30 days for GDPR right-to-erasure compliance.
• No retroactive access. Adding a new participant to p tags on future messages does not grant access to historical messages. Each gift-wrapped message is independently encrypted.
• Ephemeral indicators. Typing indicators are ephemeral events; relays MUST NOT persist them.
• Status metadata leakage. Message Status events (kind 30565) are addressable and visible to relays. The context_id and p tags reveal that two pubkeys are communicating within a context. For maximum privacy, implementations MAY gift-wrap status events as well.

Privacy

Message content and context_id values are encrypted inside NIP-17 gift wraps. Relays see only the outer gift-wrap metadata (random sender pubkey, recipient pubkey, kind 1059).

Message Status events (kind 30565) expose the context_id and participant pubkeys in plaintext tags. The context_id tag is client-side metadata; relays cannot filter on it because NIP-01 only indexes single-letter tag names. Clients filter by kinds and #p at the relay, then match context_id after retrieval. Applications with strict metadata privacy requirements SHOULD either:

1. Use opaque context_id values (UUIDs or hashes) that do not reveal the nature of the context.
2. Gift-wrap status events using NIP-59 for full metadata protection.

Typing indicators expose context_id and participant pubkeys but are ephemeral and short-lived (5-10 second expiration).

Test Vectors

Message Status (kind 30565)

{
    "kind": 30565,
    "pubkey": "a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2",
    "created_at": 1698766100,
    "tags": [
        ["d", "order_abc123:status:a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2:f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5"],
        ["context_id", "order_abc123"],
        ["last_read", "aabbccdd11223344aabbccdd11223344aabbccdd11223344aabbccdd11223344"],
        ["p", "f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5"],
        ["expiration", "1701358100"],
        ["alt", "Message read status for context order_abc123"]
    ],
    "content": "",
    "id": "...",
    "sig": "..."
}

Validation rules:

1. kind MUST be 30565.
2. d tag MUST follow the format <context_id>:status:<reader-pubkey>:<counterparty-pubkey>.
3. context_id tag MUST be present and non-empty.
4. last_read tag MUST contain a valid 32-byte hex event ID.
5. At least one p tag MUST be present.

Typing Indicator (kind 20502)

{
    "kind": 20502,
    "pubkey": "a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2c3d4e5f6a1b2",
    "created_at": 1698766200,
    "tags": [
        ["context_id", "order_abc123"],
        ["p", "f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5d4c3b2a1f6e5"],
        ["expiration", "1698766205"],
        ["alt", "Typing indicator"]
    ],
    "content": "",
    "id": "...",
    "sig": "..."
}

Validation rules:

1. kind MUST be 20502.
2. context_id tag MUST be present and non-empty.
3. At least one p tag MUST be present.
4. expiration tag MUST be present with a value no more than 30 seconds in the future.
5. content MUST be empty.

Dependencies

• NIP-01: Basic protocol flow, addressable events, ephemeral events
• NIP-17: Private direct messages (message content delivery)
• NIP-40: Expiration timestamps
• NIP-44: Versioned encrypted payloads
• NIP-59: Gift wrap (used by NIP-17 for sender metadata protection)

Reference Implementation

No public reference implementation exists yet. Implementors SHOULD refer to the kind definitions above.

A minimal implementation requires:

1. A NIP-17 compatible client for sending and receiving gift-wrapped messages with context_id tags.
2. A NIP-44 encryption library for encrypting Message Status content to the counterparty.
3. A Nostr client that supports addressable and ephemeral event publishing.
4. Context management logic to scope messages and status events to a shared context_id.
